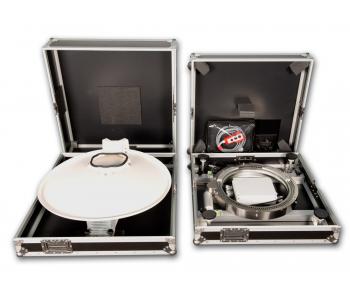

Easy pointing

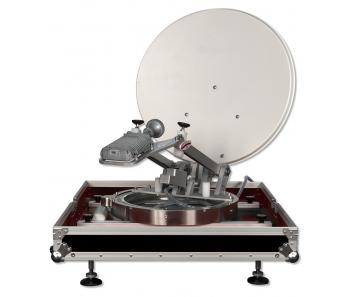

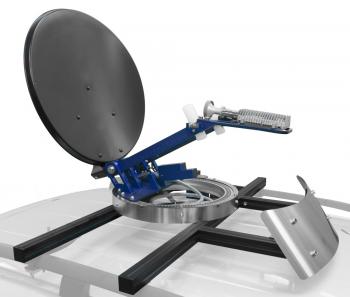

The motorized pointing system allows fast and precise alignment to the satellite Ka-Sat (Eutelsat), admissible throughout Europe.

The alignment to satelitte can easily made by an intuitive remote control and a graduated spirit level .

UNISAT IPSNG REMORTE UNISAT IPSNG Elevation
drag to rotate image

Live in a few minutes

Due to its simplicity in a few minutes you can connect to the Internet and start your broadcast

STEP BY STEP GUIDE


1

Ignition

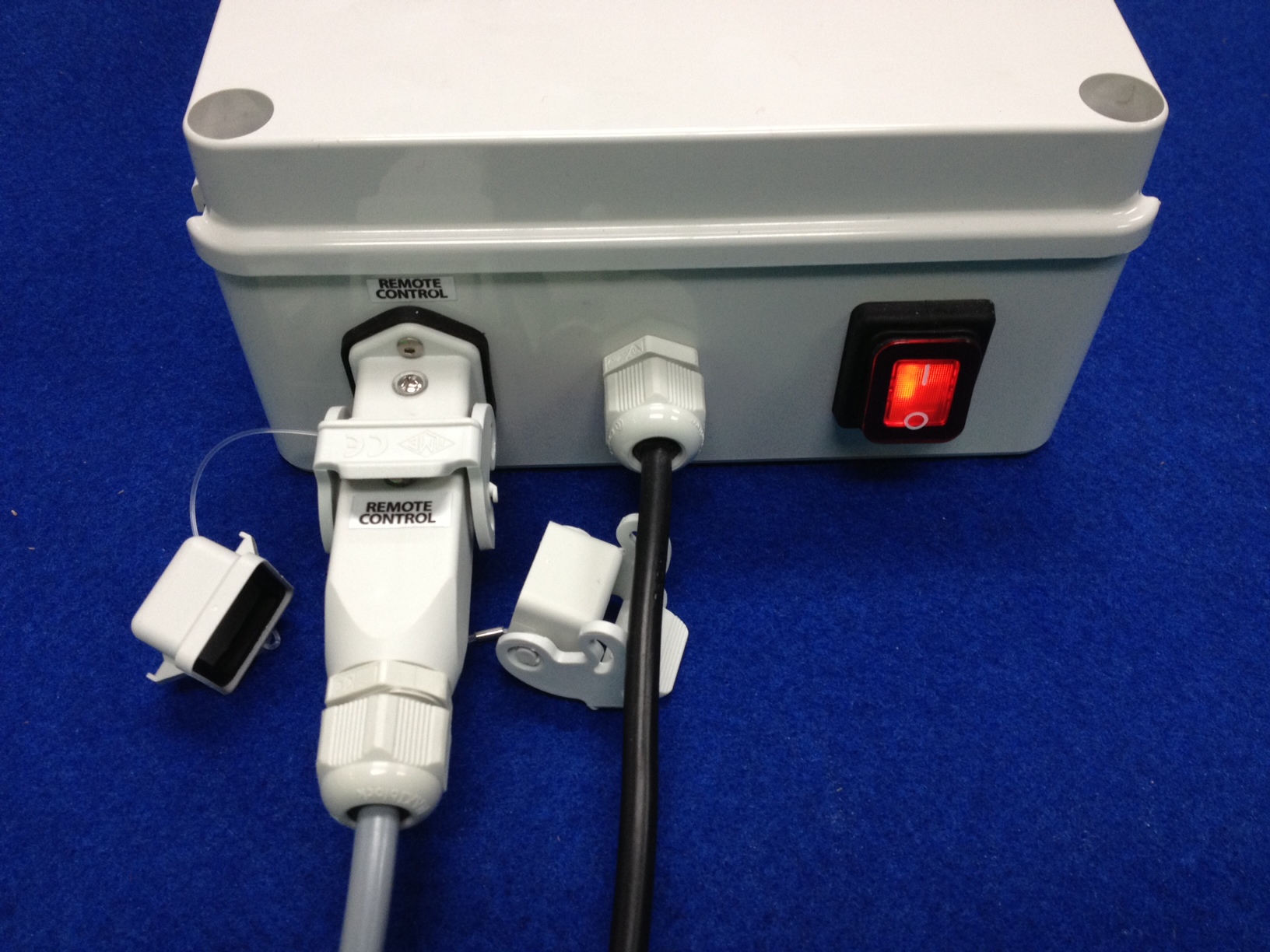

Turn on the connection box by placing the OFF / ON switch to I, and the modem.

The switch of the connection box will light indicating the presence of voltage.

Elettronica Unisat Ipsng Modem
2

Connection

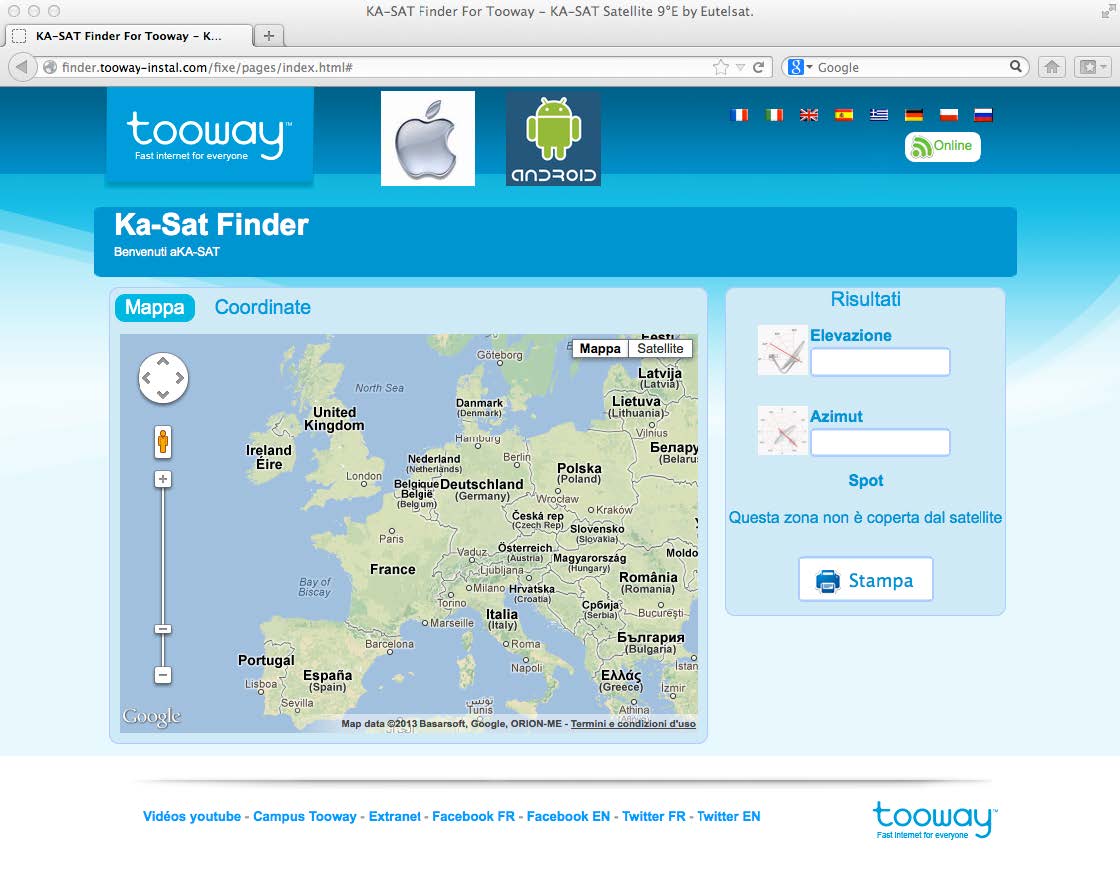

Detect, through your targeting computer, the connection parameters (elevation, azimuth, N ° Spot) relating to the place where there will be a mobile connection using the Ka-Sat Finder for Tooway program at: http://finder.tooway-instal.com

Sat Finder

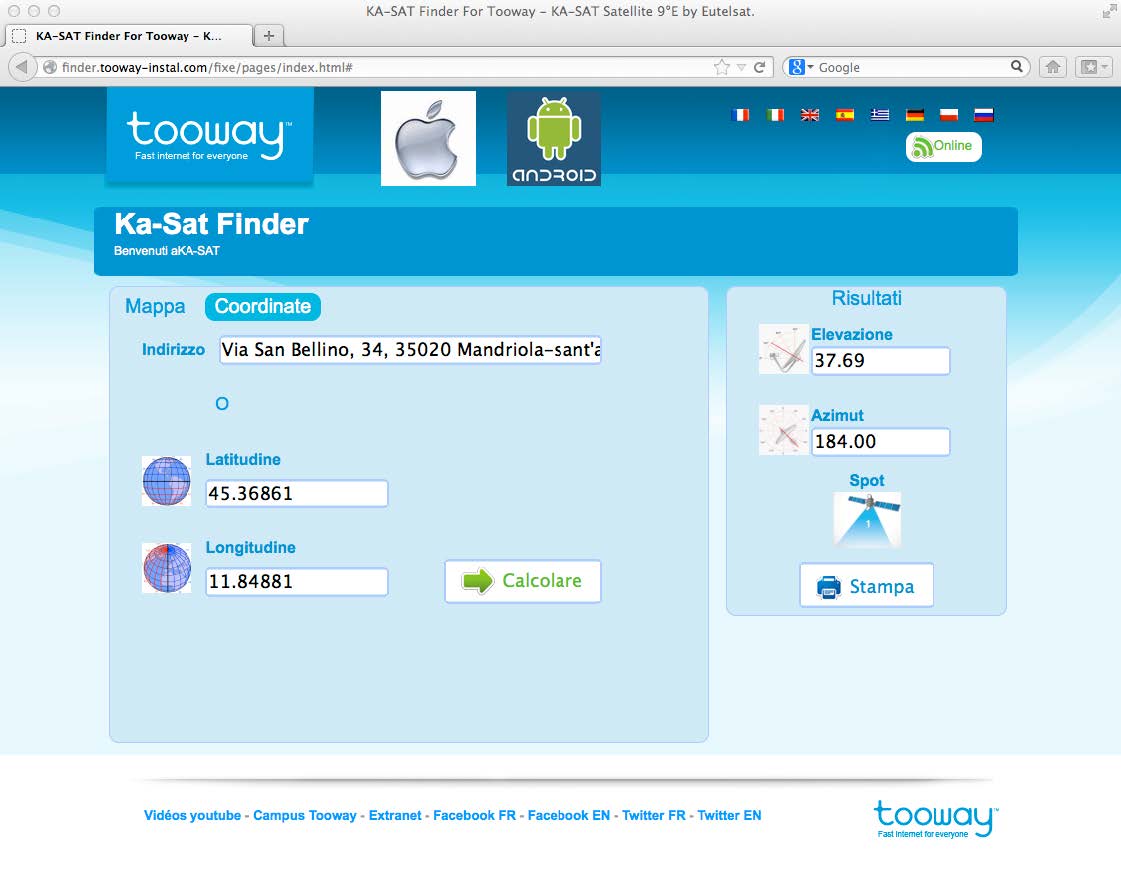

Select "details", enter data into the "Address" box, then press the "Calculate" and save the result.

Sat Finder
3

Pre-alignment

Open the parable by the elevation switch A until it reaches the tilt values ​​given by Ka Sat finder software.

Sat Finder

you can read the degrees on the practice spirit level.

UNISAT IPSNG Detail UNISAT IPSNG Detail
4

Pointing

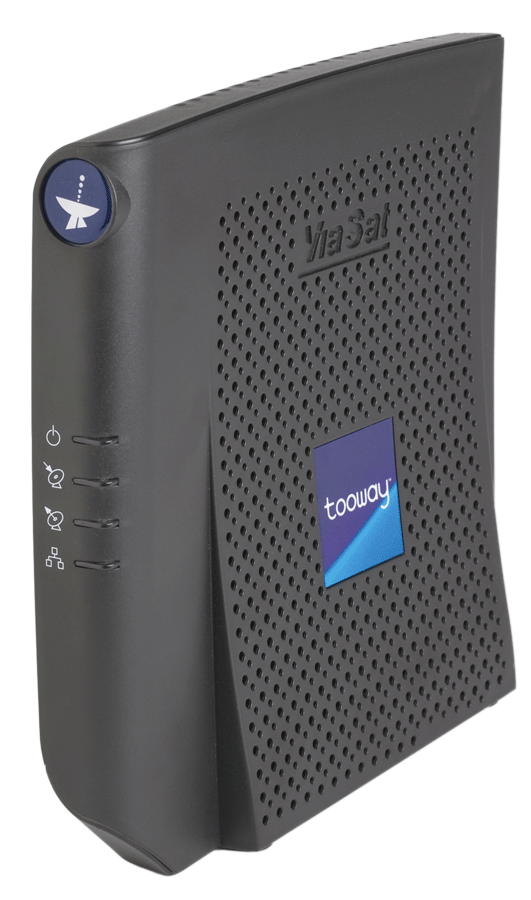

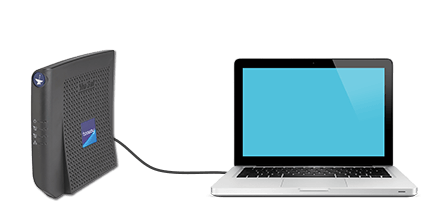

For the pointing, connect your computer directly to the network port of your Tooway modem by a network cable.

Modem

Access the pointing software pre installed on the Tooway modem through the browser of your computer Pointing at: http://192.168.100.1/install

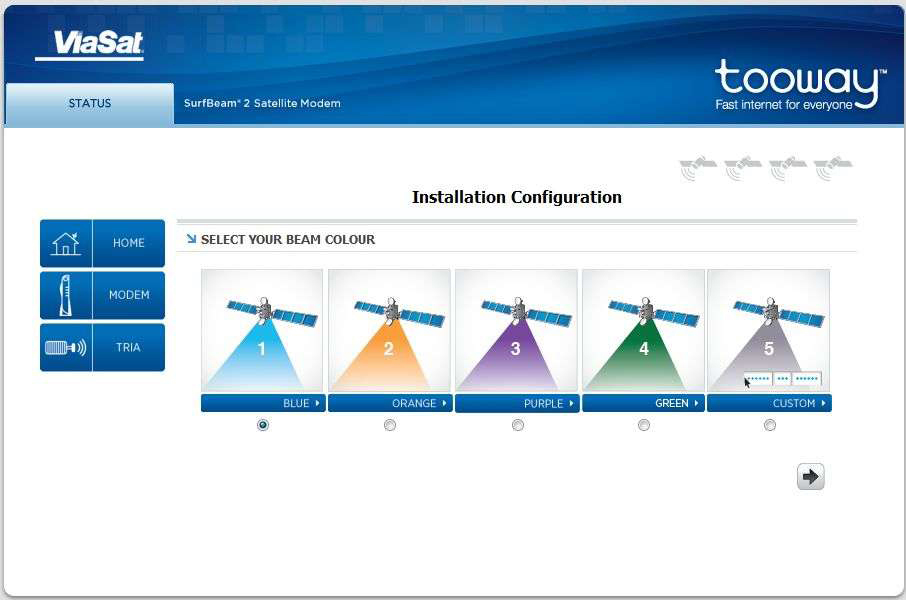

Select the correct spot as parameters measured by Ka-Sat Finder and than press the forward button.

Sat Finder

Now TRIA will beep twice to indicate that there is no signal, via the remote control pointing, start searching the satellite using the system of azimuth B control to turn the dish towards the satellite until you will hear a beep indicating the satellite's identification (identificate the direction of rotation with a compass).

Sat Finder
5

Fine pointing

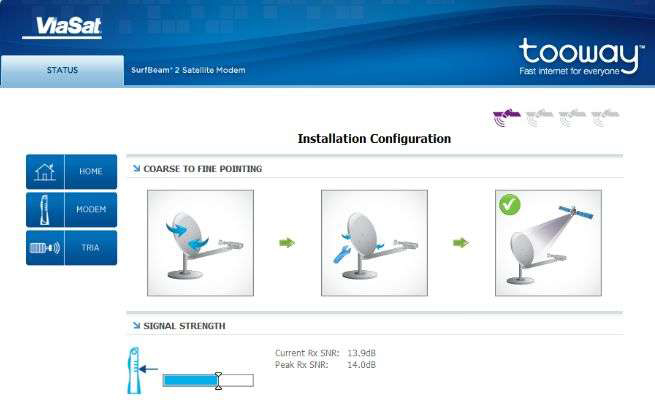

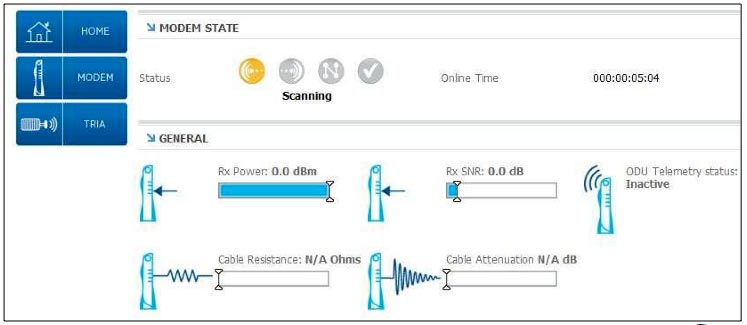

Once you had Identified the satellite, check on screen page 2 the received signal level and proceed to the fine pointing.

UNISAT IPSNG

Adjust the potentiometer of the remote control C at the minimum (turn counterclockwise) and proceed to the fine pointing.

Acting on the remote control to correct the fine pointing making small corrections, interspersed between them of 2/3 sec, to give to a signal time to be properly measured. Correct pointing you will have when the "Current Rx SNR" parameter will mark the maximum value.

Install UNISAT IPSNG

Once the fine pointing is done, press on the forward button to move to the software PAGE 3.

TRIA starts automatically search the correct bias; at this step is not required support or technical intervention and it is possible to hear some "clicks" from TRIA. On completion of the configuration process of the configuration of your PC network icon will be active.

UNISAT IPSNG Detail
